How to Build Executive Project Timelines in PowerPoint from Your Planning Tool

The short answer

To build an executive timeline from your planning tool, take only the phases and milestones from the plan and place them on the slide as an editable PowerPoint timeline, not a screenshot. Pasting a picture works for one meeting but never updates. An add-in such as Lucen Timeline imports from Excel, Microsoft Project, Smartsheet, Jira, or Wrike, lets you pick what to show, and refreshes the slide when the source plan changes.

What executives need that your planning tool does not show

A planning tool holds the whole plan: every task, dependency, owner, and date. An executive needs a few things from it: where the project stands, what is at risk, and what needs a decision. Lucen's guide to presenting project plans to stakeholders says a high-level overview should cover goals, timelines, milestones, key deliverables, risks, and budget, and should not be overly complex.

That gap is why a straight copy of the plan rarely works on a slide. The same guide suggests trimming a schedule that has more than 20 tasks and 20 milestones, and combining tasks with milestones in one graphic, such as swimlanes by phase. So the job is not exporting the plan. It is choosing which parts of it reach the slide, and keeping that choice repeatable.

From each planning tool to a slide

Every major planning tool has a built-in way to get a picture of the plan into PowerPoint. The difference is what happens next, when a date moves.

Time estimates are Lucen's own, not an independent test. Smartsheet's guide also notes that PowerPoint itself does not support task dependencies or critical path analysis, so those only appear on the slide if the tool you build it with draws them.

Lucen Timeline imports from Microsoft Project, Excel, Smartsheet, Jira, and Wrike. You choose which tasks, milestones, and dates come across, and the connection lets you refresh the slide with one click while keeping its colors, shapes, and layout.

Build the timeline in six steps

1. Decide what the audience needs to decide. Write one sentence: where the project stands and what you need from them. Everything on the slide should support it.
2. Mark the rows that matter in your plan. Add a flag column in Excel, Microsoft Project, Smartsheet, or Jira for phases and key milestones, so the same rows can be picked every reporting cycle.

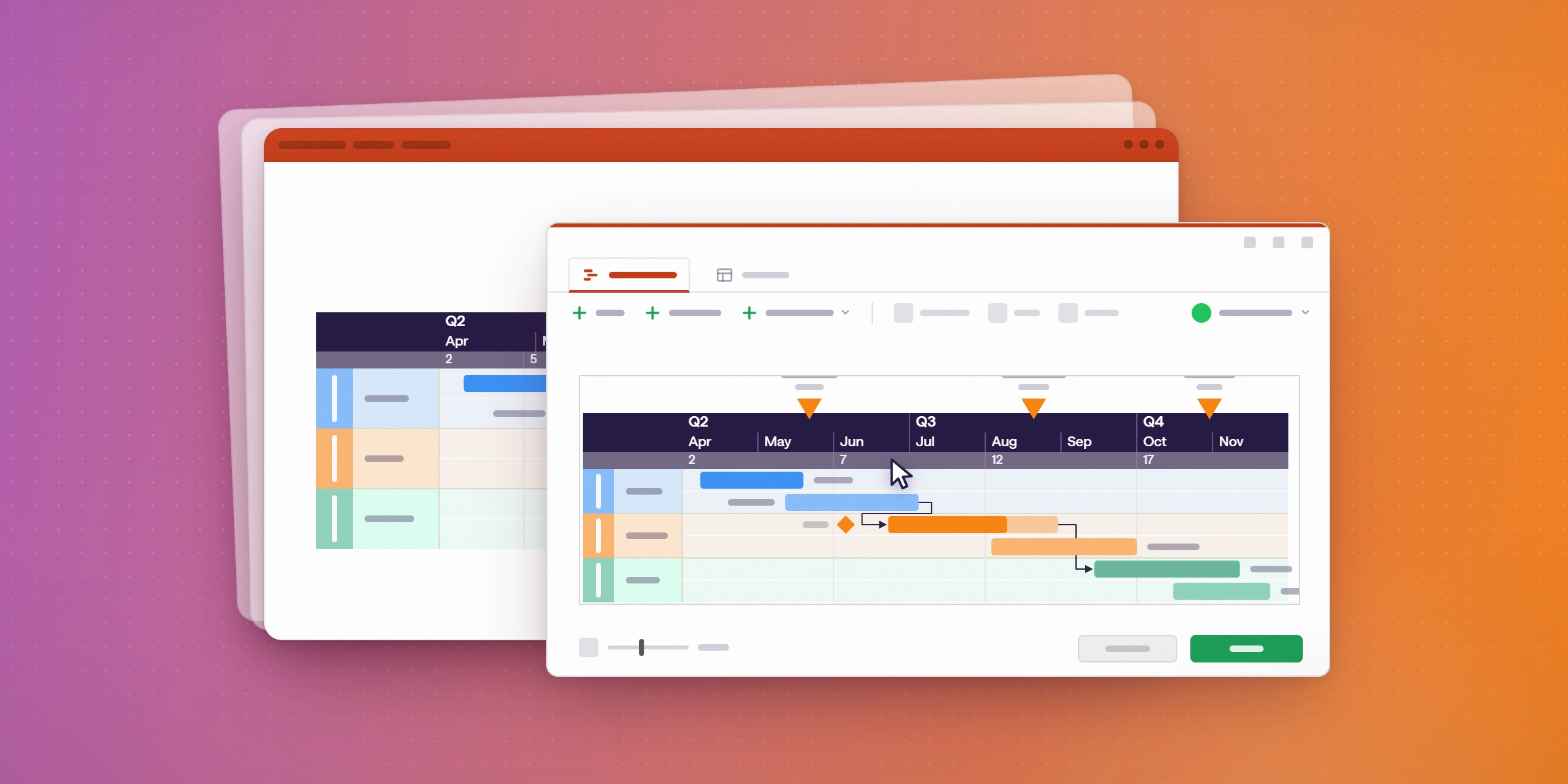

3. Bring in only those rows. With an add-in such as Lucen Timeline, import the plan and choose specific tasks, milestones, and dates during column mapping. With a built-in route, filter the plan to summary tasks first.
4. Group by phase. Put tasks and milestones in swimlanes by phase so progress reads at a glance, as Lucen's stakeholder guide suggests.
5. Create the slide and add context. Create the timeline in PowerPoint, then pair it with goals, deliverables, risks, and budget on the same slide or the next one.
6. Refresh instead of rebuilding. When the plan changes, refresh the slide from the source file. With a picture, you repeat steps 3 to 5.

What to keep and what to cut

Keep the items an executive can act on. Cut the detail that only the project team needs.

• Keep: phases, key milestones, the next decision date, and anything late or at risk. Lucen's guide also lists goals, key deliverables, and budget as overview content.
• Cut: subtasks, task-level owners, and dependencies the audience does not need to follow. If the plan runs past 20 tasks and 20 milestones, trim it, per the same guide.
• Rewrite: task names that only make sense inside the planning tool. The guide recommends plain language and avoiding jargon.
• Show progress and obstacles. Use clear visual indicators for completed, ongoing, and blocked work, and be open about risks to build trust.

Keep the slide current

The first version is the easy part. The cost shows up in the second and third update, when dates move and the picture on the slide is out of date.

With an image from Microsoft Project, Smartsheet, or Jira, every change means going back to the planning tool, exporting again, and re-placing the picture. With an Excel chart pasted using the Embed option, you can revise the dates in the Excel data. With an add-in that connects to the source file, you refresh the slide and keep its formatting. Lucen describes this as setting up the connection once and refreshing with one click when the file changes.

Whichever route you use, schedule the update with the reporting cycle, so the slide is refreshed before the meeting, not during it.
